DESCRIPTION

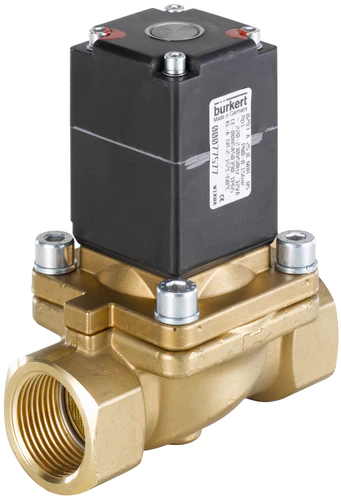

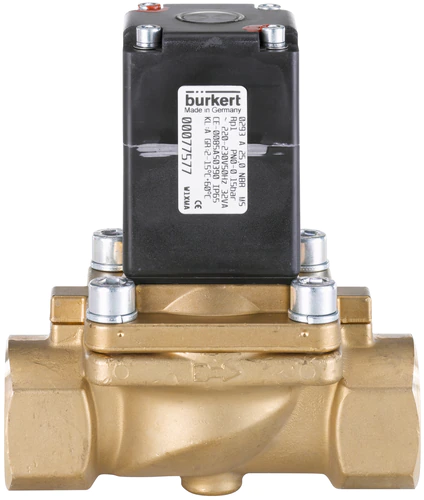

Type 293 switches without pressure difference from zero bar. The valve is especially good for switching low-pressure combustible gases.The direct-acting solenoid valve is delivered with circuit function A. It is normally closed. Upon switching, the magnetic core is tightened against the spring and the valve opens. A filter is built-in to the inlet. A dirt trap <= 500 µm (example our type TFU001) needs to be installed before the valve when using DN 25. This dirt trap needs to be accessible for maintenance.
- Gas valve with DVGW approval acc. to EN 161, Class B
- Compact design
- Up to DN25 and 150 mbar
- Body in brass
- Dirt filter in the inlet
