CYLINDER LINERS, SLEEVES AND AIR COOLED BLOCKS
We are proud to offer Atrac Cylinder Liners, Sleeves, and Air Cooled Blocks, designed to meet OE specifications, upgraded standards, or customized requirements tailored to specific market needs. Atrac Engineering’s extensive design and material expertise ensures these high-performance products deliver exceptional durability, even in the toughest operating conditions, all while remaining cost-effective.

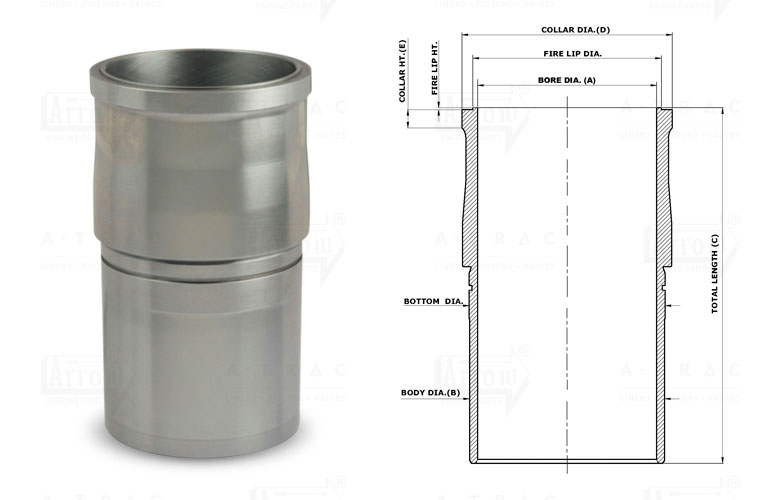

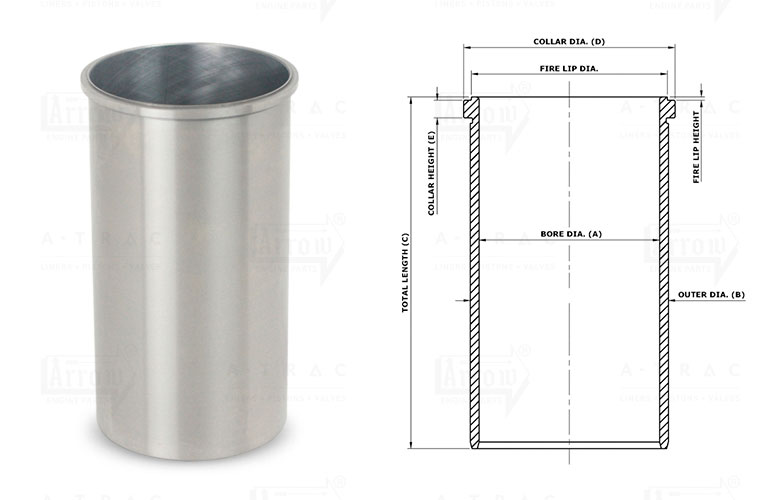

Cylinder Liners by Atrac are manufactured using gray cast iron and the advanced Centrifugal Casting Process. This method, recognized as the best for producing cylinder liners, involves rotating a permanent mold at high speeds as molten metal is poured in. The centrifugal force ensures even metal distribution, resulting in a fine-grained casting with superior surface quality. Special chemical compositions are utilized to enhance corrosion resistance and lubrication, ensuring longevity and reliable performance.

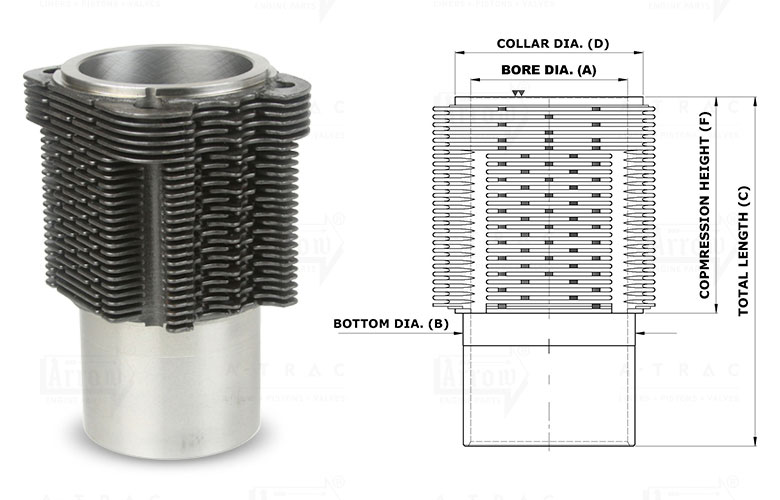

For Air Cooled Cylinder Liners, Atrac employs a special Shell Moulding Process. This technique uses wear-resistant, close-grained iron casting to produce liners that ensure efficient cooling and extended service life.
Production Capacity: 1.2 million pieces per annum
Size Range:
- Bore Diameter: 46.00 mm to 222.25 mm
- Total Length: 150.00 mm to 330 mm
Finishes:
- Semi-finished
- Fully finished
Chemical Composition:
- Chromium: 0.25% – 0.50%
- Carbon: 3.00% – 3.50%
- Silicon: 2.00% – 2.50%
- Manganese: 0.50% – 0.80%
- Phosphorus: 0.30% – 0.50%
- Sulphur: Max. 0.05%
Other material compositions, including those using Chromium, Molybdenum, Nickel, Copper, and Boron, are available to meet customer specifications in line with international standards.
Micro Structure:
- Predominant distribution: A, permitted B and D Size 4~6
- Pearlite: Max 2% ferrite
- Dispersed network of steadite
- Carbides: Max. 1%
Hardness (BHN): 240 to 260
Tensile Strength: 210 to 275 N/mm²
As a trusted distributor, we provide these high-quality Atrac products, ensuring that your engines run smoothly and efficiently with components built to last.
